Assembly machine for air release valve

Sectors

Valves/Gas

Productivity

1800

Applied technology

Palletization

Camas Technology

Macchina meccanica a camme

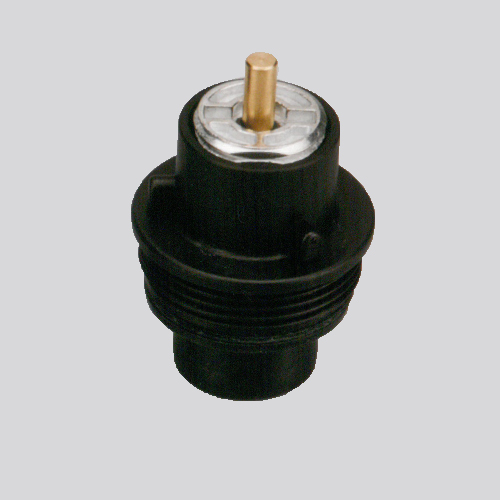

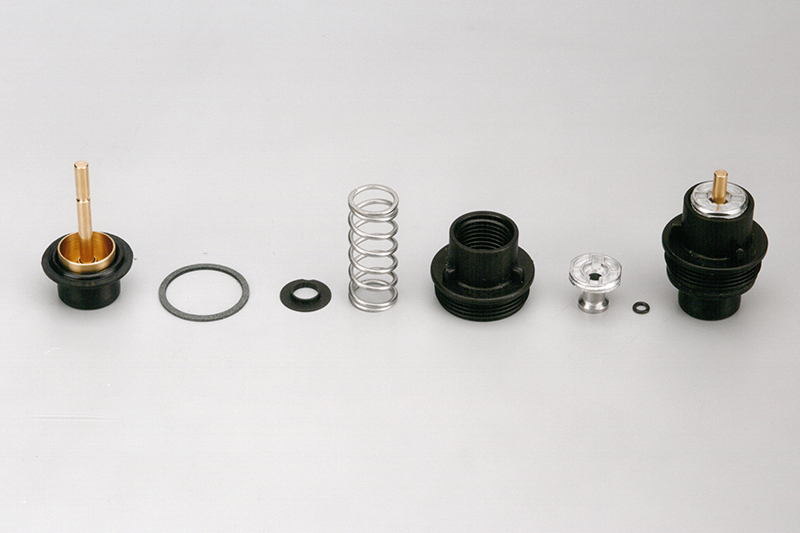

Fully automatic machine for the assembly of a component of the air release valve on sanitary plants. The external body can be made of plastic or brass. It is a single-product line.

The plant consists of a machine featuring a turntable with 16 sections with cam-operated pick&place units. The finished parts are unloaded by a Cartesian-coordinate robot inside thermoformed trays and sent to the next phases.

The unloading position houses an effective and economical unloading and pallet system allowing for the accumulation of 3 trays for loading and 3 empty trays in addition to the one being filled.
